Overview

Review: Ass1, rebalancing tree during inserts, decision trees, const, priority queues, abstraction(?)
JollyFeedback - automated tests
Ass2: BinarySearchTree
Big O Reading - Resources: Cracking the Coding Interview - VI Big O
Binary Heaps
Graphs

const

const to indicate that variable value does not change
```
  const int MAX{100};
```
const to indicate that a class member function does not modify the object
```
  void inorderTraverse(void visit(ItemType&)) const;
```
const to indicate that the parameter passed by reference will not be modified
```
  bool add(const ItemType& item);
```

const to indicate that the parameter returned is by reference, but cannot be changed

  // assume getName is a member function and returning a reference
  // to a private variable in the class
  const string& getName() const;

Do not return a reference or pointer to a local variable

const for pointer

  // read backwards: ptr is a pointer to an integer constant
  // ptr cannot be used to change the value
  const int * ptr;

https://isocpp.org/wiki/faq/const-correctness

Runtime polymorphism - virtual + override

Games: Bunch of different graphical objects
All classes of objects have their own draw() function
Base class defines it as virtual void draw() const
Derived classes define it as void draw() const override
So, we can have an array of pointers of type graphical object and use go->draw() to get the correct draw function

http://www.cplusplus.com/doc/tutorial/polymorphism/

Decision Trees

Heap

MaxHeap: Complete binary tree whose root is greater than its children

MinHeap: …

Not a binary search tree!

Heap - Array Based Implementation

Heap has to be complete, filled from left to right

We know the index of each node based on level i

- left: 2 * i + 1
- right: 2 * i + 2
- parent: (i - 1) / 2

Keep track of itemcount and maxItems

Heap - Array into a Heap

Start from rightmost leaf up to root, call heapRebuild

void heapCreate()
{
 // can simplify as itemCount / 2
 for (int index = itemCount - 1; index >= 0; index--)
 {
    heapRebuild(index);
 }
}  // end heapCreate

void heapRebuild(const int subTreeNodeIndex)
{
   if (!isLeaf(subTreeNodeIndex))
   {
      // Find larger child
      int leftChildIndex = ...
      int rightChildIndex = ...
      int largerChildIndex = ...
      // Swap with larger child if node value is smaller
      if (items[largerChildIndex] > items[subTreeNodeIndex])
      {
         swap(items[largerChildIndex], items[subTreeNodeIndex]);
         // Continue with the recursion at that child
         heapRebuild(largerChildIndex);
      }  // end if
   }  // end if
}  // end heapRebuild

Heap - Add

Add the new node to the next available spot
Bubble up, swapping values with parent until Heap property restored
Group Exercise: Add 50, Add 10

Heap - Remove

Remove the node, we now have 2 semiheaps
Last node that was added to the heap, becomes root
Trickle down, swapping root value with child value (while child value larger)
Group Exercise: Add 50, Add 10, Remove 5, Remove 6

Implementing Priority Queue as a Heap

Highest priority is at the root of MaxHeap

BST vs Heap in Implementing Priority Queue

If we know the maximum number of items in priority queue, heap is better

Heap is blanced, BST can become unbalanced degrading performance

If multiple items have the same priority, we can maintain a list at the node

When last item in the list deleted, node is deleted

Heap Sort - Sort an Arry Using Heap

Make the array into a heap
Partition the array into Heap and Sorted parts
Remove the root of the Heap, transfer it to Sorted
Heap is smaller and has to be rebuilt. Sorted now has one more element
Keep removing until Heap is empty

Group Exercise

Start with array [25 30 20 80 40 60]

Turn the given array into a heap
Sort the array by removing root at each turn - draw the array after each swap and heapRebuild

Given a maxHeap, if one of the values in the heap changes, how do you restore the heap?

Graphs

Directed/Undirected graphs

Graphs - Implementing

Adjacency Matrix
Adjacency List

Graphs - Searching

DFS - Depth-First Search

dfs(v: Vertex) {
    s = a new stack
    s.push(v)
    Mark v as visited
    while (!s.isEmpty())
        if (no unvisited adj to vertex on top of stack)
              s.pop()
        else
            Select unvisited adj to vertex on top
            s.push(u)
            Mark u as visited
}

BFS - Breadth-First Search

bfs(v: Vertex) {
q = new queue
q.enqueue(v)
Mark v as visited
while (!q.isEmpty())
      q.dequeue(w)
      for (each unvisited vertex u adjacent to w)
          Mark u as visited
          q.enqueue(u)
}

Graphs - Group Exercise

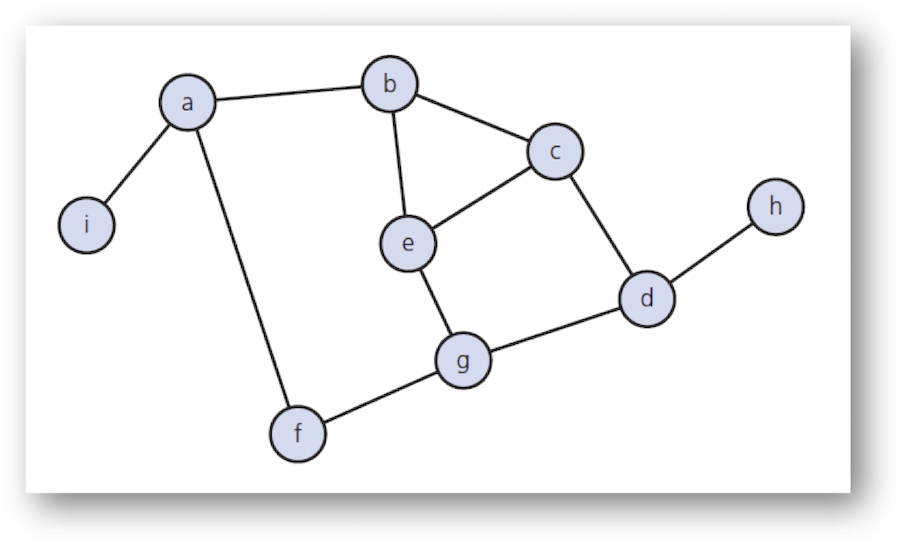

DFS, start at i, looking for e, mark all nodes visited
BFS, start at i, looking for e, mark all nodes visited
